This item is available for pick up in Ojai, CA.

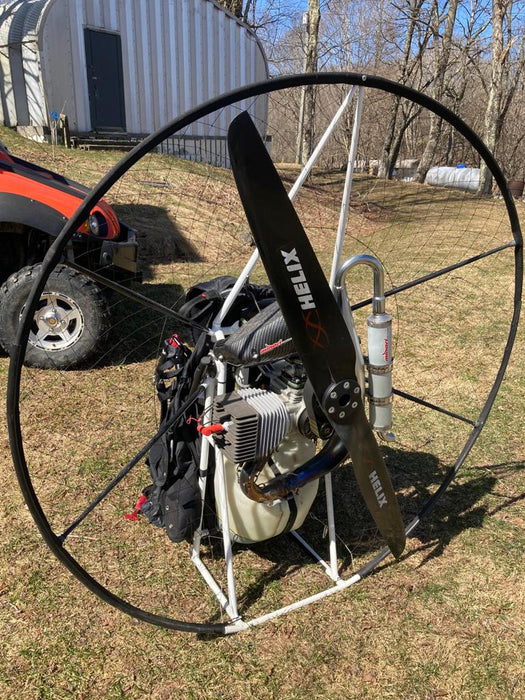

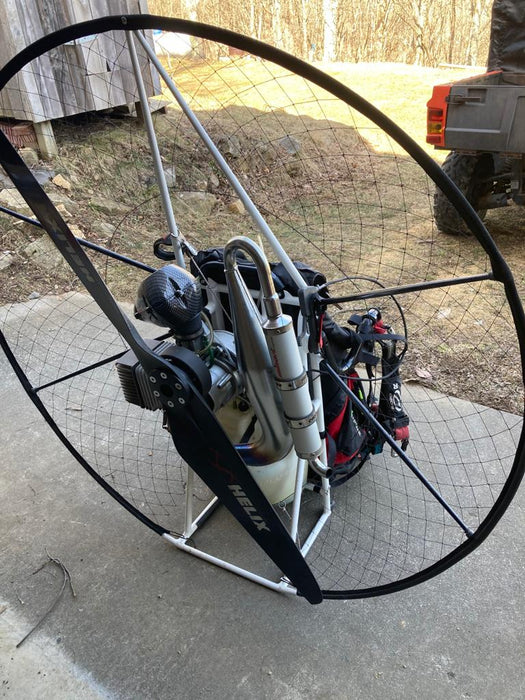

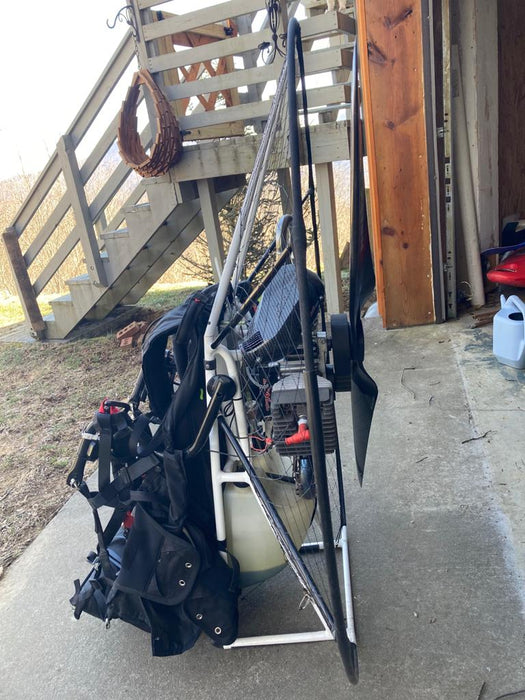

Minari makes some of the most reliable and powerful Paramotor engines available today.
Minari makes some of the most reliable and powerful Paramotor engines available today.

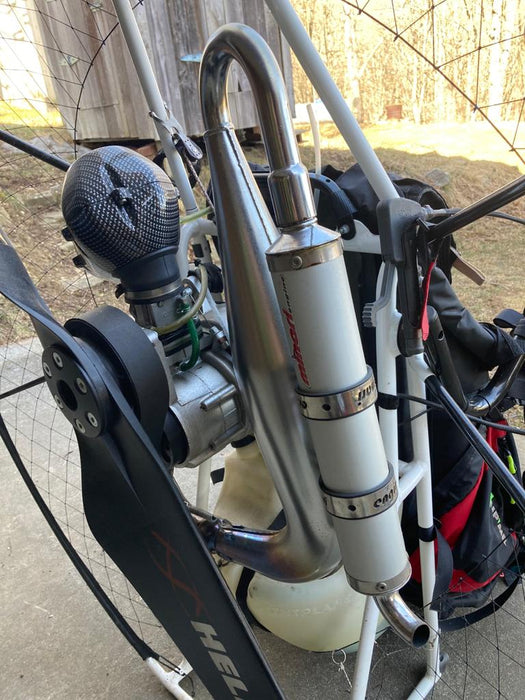

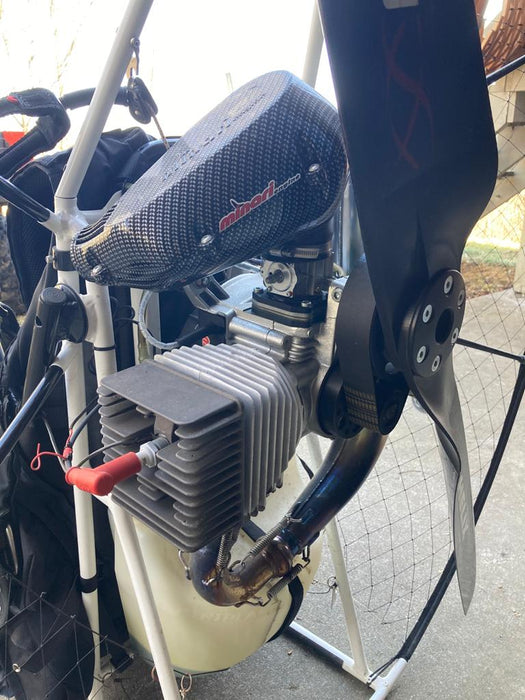

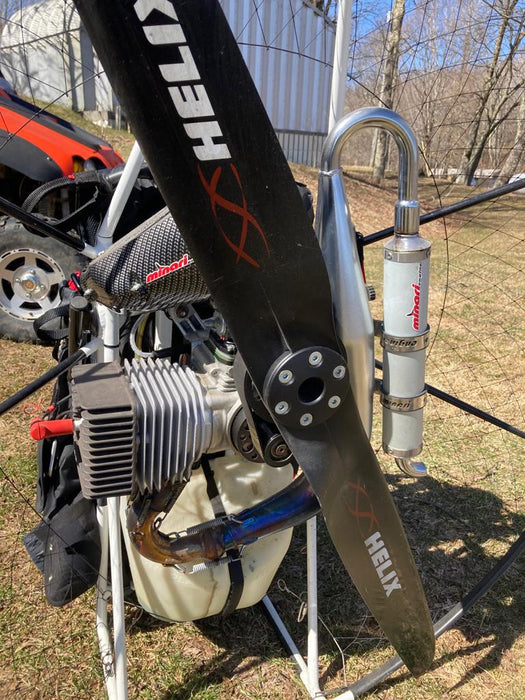

Minari Paramotor engines are 2 stroke and 180cc, made to exacting standards and manufactured on CNC machines using modern technology and finished with special treatment. The cylinders are aluminum alloy Galsi 9 hardened, with the inside having a Nickel-Silicon plating and completely honed with diamond tools and plateau finishing. The pistons have diamond profiles and are completed with 2 rings chromed. The crankshafts are made of forged steel, completely finished. The exhaust system is well sectioned and supported.

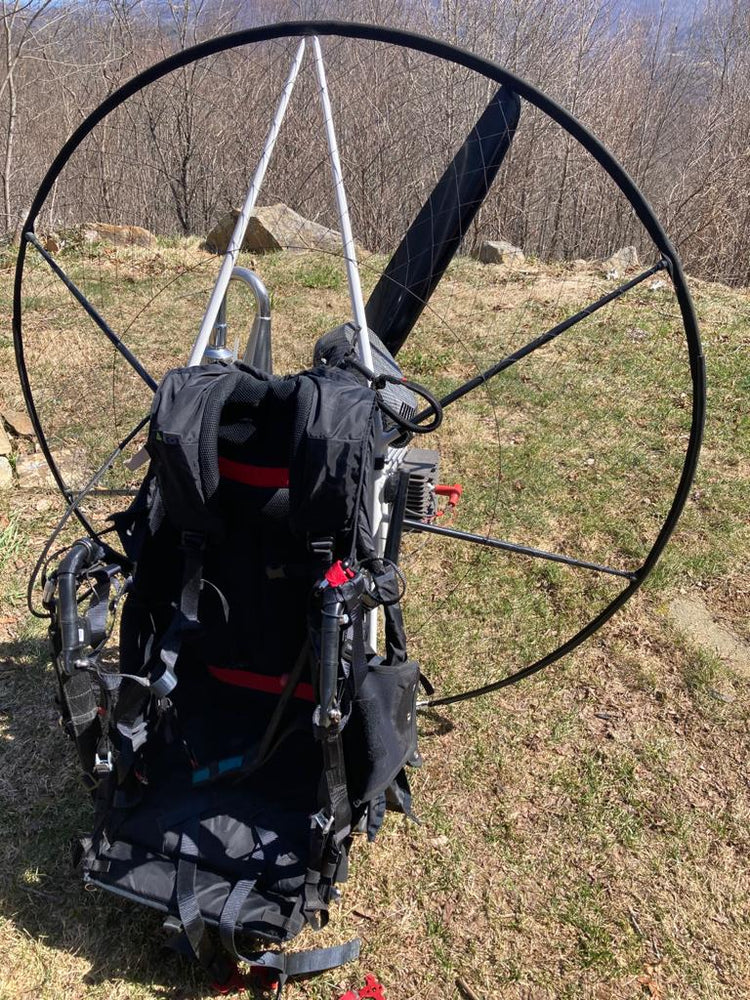

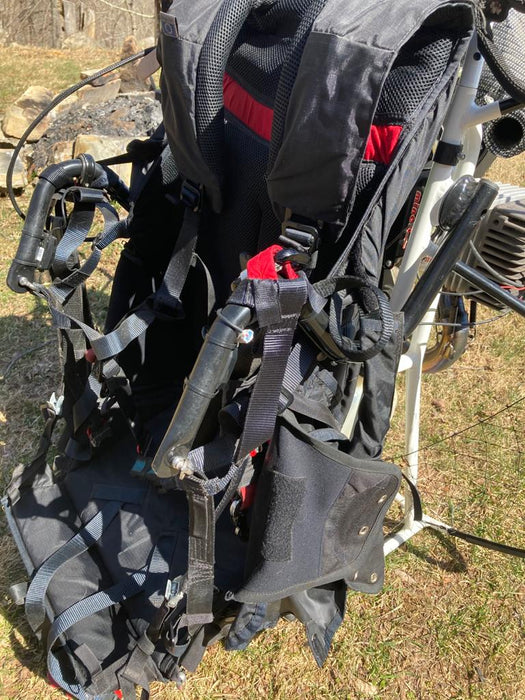

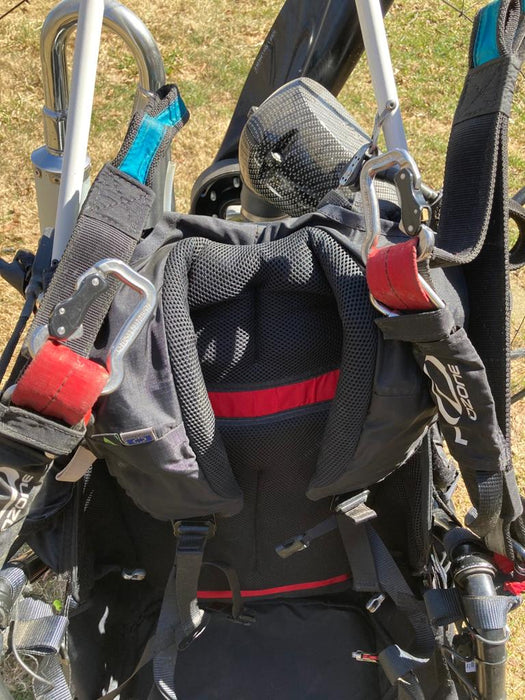

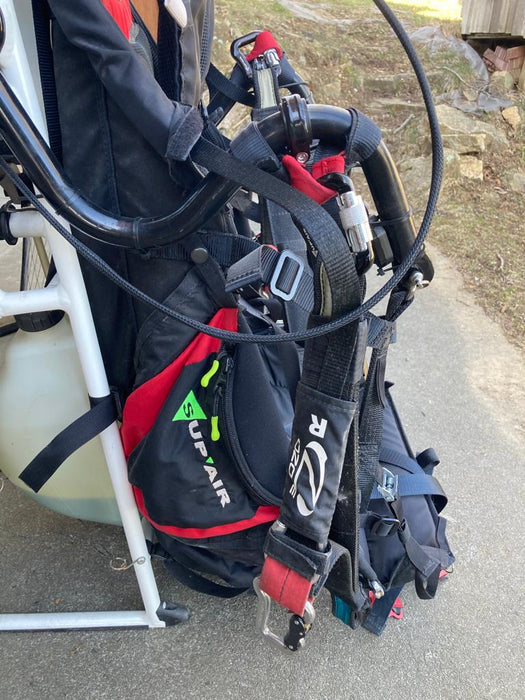

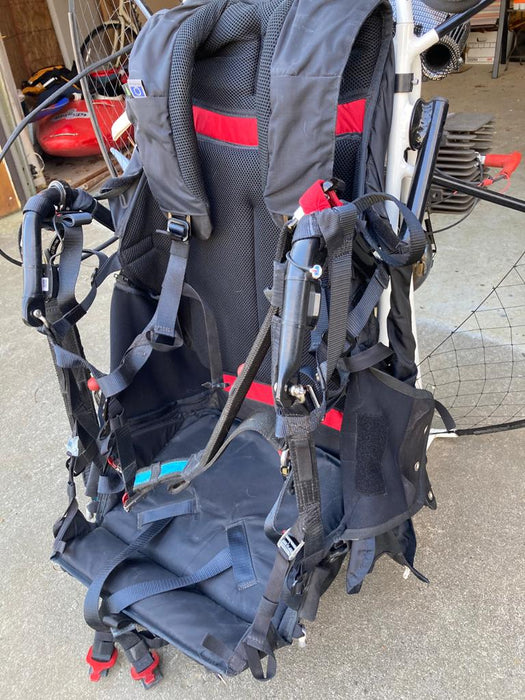

The ABM Low-Hangpoint Harness system handles the torque really well, it's a completely different feel than when this motor is mounted on other frames - very balanced, very light and climbs straight even at full throttle as a result of the ABM arms. The ABM arms are "bent" in the opposite direction than the Top 80 and Polini 130cc units, as the Minari is a belt-drive, and turns the prop in the opposite direction than the gearbox redrive.
TECHNICAL SPECIFICATIONS
| TECHNICAL DETAILS | 180cc |
|---|---|
| ENGINE: | Single Cylinder 2T |
| MOTOR CARTER: | Magnesium |
| CYLINDER: | Aluminum, 6 transfer with nickel silicon plated |
| PISTON: | 2 rings thickness 1,2mm steel chromed |
| COOLING: | By air/natural |
| DIAMETRE and STROKE: | 66x53 |
| CUBIC CAPACITY: | 181.23cc |
| COMPRESSION RATIO: | 11:1 |
| INTAKE: | Reed Valve inside crankcase to 4 petal |
| CARBURETTOR: | Walbro WB 37 C |
| MAX POWER: | 7500 rpm (26Cv) |
| IGNITION: | Electronic to variable advance |
| STARTING: | Manual |
| BELT DRIVE: | Belt POLIV - 14 rim of pulley |
| REDUCTION: | Pulley ratio 1/2.6 |
| ENGINE SUPPORT: | n°4 Anti-vibration |
| MOTOR FUEL: | Premium gasoline + semi-syntetic oil 2,5% |
| COMPLETE ENGINE WEIGHT WITH MUFFLER: | 14.05 Kg (Manual Starter) |
| COUNTER CLOCKWISE ROTATION: | The front of the drive |
